All prices are exclusive of VAT

HomepageRoman Blinds - Rotary Chain, Corded and Motorised  » Chains, Joiners And Joining Tool.  »  Lacquered Brass Bead Chains

Lacquered Brass Bead Chains

IMPORTANT SAFETY NOTICE:
If using with a heavy duty drive then you MUST use a continuous chain ring (See section below)

Brass finish metal bead chainEnlarge

Brass finish metal bead chain

Ref: CHAINBP

For standard 1:1 ratio chain drives only.

Please note: You are ordering the length of bead chain in metres not the number of chains. The chain will be supplied in one continuous length. If you are ordering for more than one blind then please ensure you order the correct number of metres of bead chain for all of your blinds.

Price per metre:

(149 or less)£1.71 +VAT
(150 or more)£1.34 +VAT

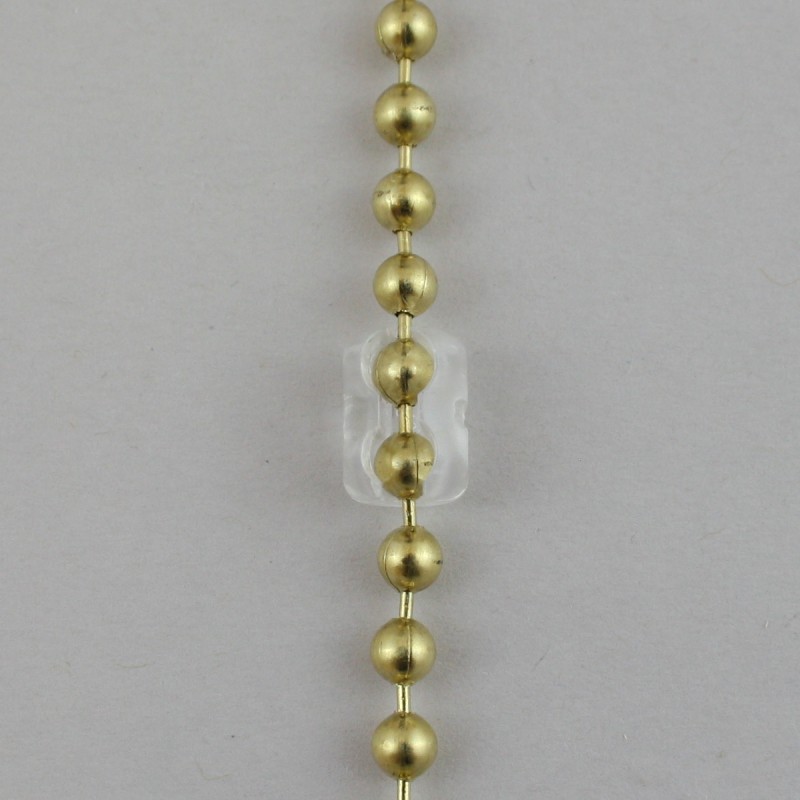

Clear Plastic breakaway chain joinerEnlarge

Clear Plastic breakaway chain joiner

Ref: CHBREAKCLR

Use to join plastic or metal bead chains.
Joiner will breakaway to prevent strangulation risk.

The correct position of the breakaway device is just below the chain drive, on the down side of the chain, when the blind is fully up. This ensures that the operating load on the chain breakaway device is the least possible because the weight of the blind is working with the breakaway device.

Chain shown in image not included.

To be compliant with child safety regulations a Merrick & Day chain must be used.

Price each:

(99 or less)£0.25 +VAT
(100 or more)£0.20 +VAT

Brass finish metal joiner for joining the bead chainEnlarge

Brass finish metal joiner for joining the bead chain

Ref: CHJOINBP

Price each:

(99 or less)£0.27 +VAT
(100 or more)£0.22 +VAT

Metal bead chain joining tool for splitting & joining the metal bead chainEnlarge

Metal bead chain joining tool for splitting & joining the metal bead chain

Ref: CHAINTOOL

This tool makes the continuous chain rings required for the Super, Compact and Deluxe heavy duty chain drives.

Price each:

£89.52 +VAT

CONTINUOUS BEAD CHAIN - IMPORTANT SAFETY NOTICE:
When using a standard chain drive the continuous chain must be fitted with a chain tensioner (CHSAFE-R) screwed to the wall no lower than 150cm from the floor. If the chain drive is with child safety breakaway then the chain may be no lower than 60cm from the floor.

State the exact length you would like the chain in the box provided.

To calculate maximum allowable chain length to comply with child safety regulations:

Chain Drive WITHOUT Child Safety Breakaway
Max drop of chain = (Height of headrail from floor in cm - 150cm)
Length of chain = drop x 2
Chain Drive WITH Child Safety Breakaway
Max drop of chain = (Height of headrail from floor in cm - 60cm)
Length of chain = drop x 2

Bead chain safety retainerEnlarge

Bead chain safety retainer

Ref: CHSAFE-R

Attach to wall to retain the chain or cord. if a chain breakaway device is not present.

The R clip (CHSAFE-R) tensioning device to be installed no lower than 150cm from the floor.

The R clip must also have attached a tensioning device warning label (CHWARNTD)

Price each:

(99 or less)£0.24 +VAT
(100 or more)£0.19 +VAT

up to 100cm Brass finish continuous brass bead chain ring.

up to 100cm Brass finish continuous brass bead chain ring.

Ref: CHRINGBP100

Includes a length of metal bead chain ring and a small make up charge for us to manufacture a chain to your required length up to 100cm

Enter chain length in cm (max 100cm) below

Price each:

(4 or less)£2.71 +VAT
(5 or more)£2.34 +VAT

100cm - 200cm Brass finish continuous brass bead chain ring.Enlarge

100cm - 200cm Brass finish continuous brass bead chain ring.

Ref: CHRINGBP200

Includes a length of metal bead chain ring and a small make up charge for us to manufacture a chain to your required length up to 200cm

Enter chain length in cm (max 200cm) below

Price each:

(4 or less)£4.42 +VAT
(5 or more)£3.68 +VAT

200cm - 300cm Brass finish continuous brass bead chain ring.Enlarge

200cm - 300cm Brass finish continuous brass bead chain ring.

Ref: CHRINGBP300

Includes a length of metal bead chain ring and a small make up charge for us to manufacture a chain to your required length up to 300cm

Enter chain length in cm (max 300cm) below

Price each:

(4 or less)£6.13 +VAT
(5 or more)£5.02 +VAT

300cm - 400cm Brass finish continuous brass bead chain ring.Enlarge

300cm - 400cm Brass finish continuous brass bead chain ring.

Ref: CHRINGBP400

Includes a length of metal bead chain ring and a small make up charge for us to manufacture a chain to your required length up to 400cm

Enter chain length in cm (max 400cm) below

Price each:

(4 or less)£7.84 +VAT
(5 or more)£6.36 +VAT

400cm - 500cm Brass finish continuous brass bead chain ring.Enlarge

400cm - 500cm Brass finish continuous brass bead chain ring.

Ref: CHRINGBP500

Includes a length of metal bead chain ring and a small make up charge for us to manufacture a chain to your required length up to 500cm.

Enter chain length in cm (max 500cm) below

Price each:

(4 or less)£9.55 +VAT
(5 or more)£7.70 +VAT
