Super Rotary Chain headrail system 60cm wide

Super Rotary Chain headrail system 60cm wideEnlarge

Ref: HRSUP60R

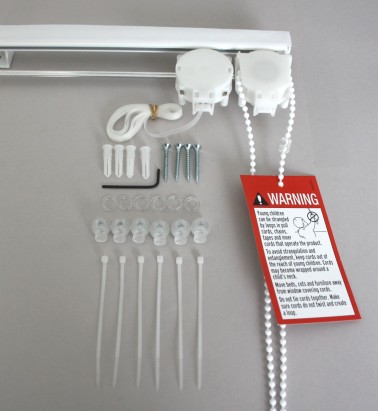

2 transparent tape drops, 2 universal face-fix/top-fix brackets

Dimensions:
Profile Height: 22mm
Profile Depth: 10mm
Bracket projection: 37mm to front of headrail.


The standard headrail is supplied with a 1:1 ratio chain drive suitable for blind weights of up to 2kg and a 350cm (175cm drop) white nylon chain with a child safety breakaway device which also allows you to shorten the chain ring if necessary. The chain drive is supplied fitted on the right of the headrail but can easily be moved to the left if required. The bottom of the chain must be no lower than 60cm from the floor.

Optional Brass bead chains are available in brass, chrome, nickel, gold, antique silver, antique brass and black nickel finish. After adding the headrail to basket csee BRASS BEAD CHAIN OPTIONS below.

Price each:

(4 or less) £16.19 +VAT
(5 or more) £13.50 +VAT



Upgrade to Heavy Duty Drive

For heavier blind weights up to 4.5kg upgrade the standard 1:1 ratio chain drive to a 1:5 ratio heavy duty chain drive.

You MUST use a continuous chain ring with this heavy duty chain drive.

Heavy duty chain drive for weights up to 4.5kg, ratio 1:5 Enlarge


This drive requires a continuous chain ring and an R clip (CHSAFE-R) tensioning device to be installed no lower than 1.5m from the floor.

The R clip must also have attached a tensioning device warning label (CHWARNTD)
see continuous chains and R clips below.

It cannot be used with a chain joiner or chain breakaway.
X close

Kit Options
Rod Bar & Tape Packs

You may wish to add the following options to complete your Roman Blind Kit.

Roman blind rod pack 60cm wideEnlarge

Additional charge £5.45+VAT

Packs include: 7 fibreglass rods with plastic end caps, flat bottom aluminium bar with plastic end caps.

If selected, you can enter your dimensions below and we will professionally cut your fibreglass rods and bottom bar to your exact requirements.

Roman blind tape pack 60cm wideEnlarge

Additional charge £4.38+VAT

All tape packs are suitable for drops up to 260cm.
Includes: Ivory rod tape and S hooks.

Can be used as an alternative to making rod pockets in the
Roman blind lining.

Chain Drive

All of our Roman Blind systems are supplied with the chain drive mounted on the right hand side of the headrail. If you would prefer that it is mounted on the left hand side then please tick the following box.

Free Optional Cutting Service

We offer a FREE cutting service on this headrail or kit.
Simply tick this box and enter the required lengths in mm.

If you do not tick the box then the track will be supplied un-cut.


Now, please enter the lengths required in mm.


Your measurements for the headrail length will include the drive and endcap.

If you have added the optional Roman blind rod bar pack you should also enter the required length for the flat bottom bar and fibreglass rods including end caps. Fibreglass rods are normally 30-50mm less than the headrail to allow for the fabric side turning.

If you do not enter measurements then the items ordered will be supplied un-cut.

After adding the headrail to basket, if you have ordered the 1:4 Heavy Duty Drive Upgrade, you will need a continuous chain ring. If required please order below.
